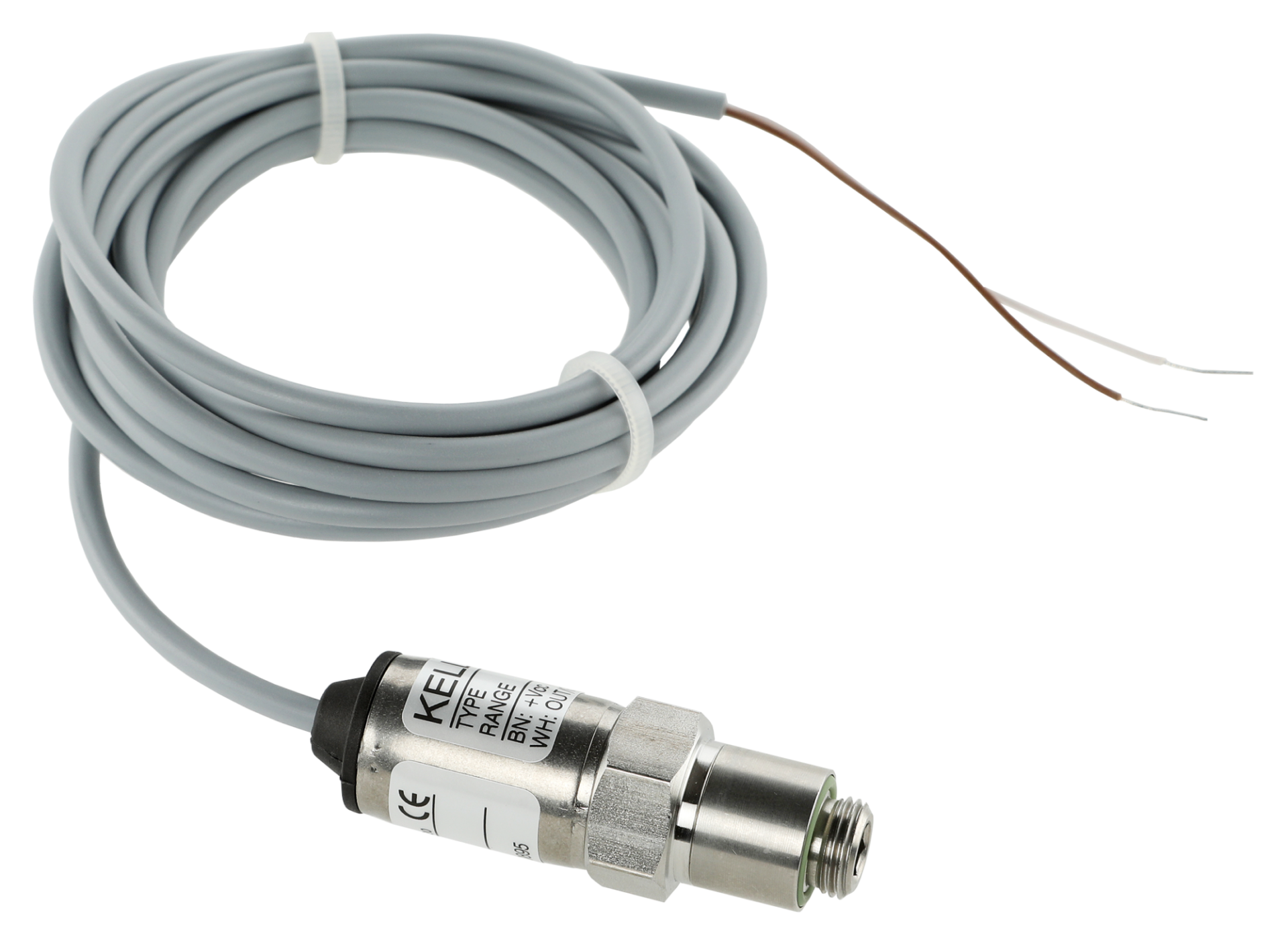

The piezoresistive 2-wire Pressure Transmitter DS2 (Pressure Sensor) is designed for the pressure range from 0 - 50 bar.
It is equipped with a 2 m long Connection Cable and Distance Adapter.
In this configuration, it can be used directly in the AXSPV-EP and -PP Spray Valves or in the AXDV-P1 and -P50 Pulse Valves.
How can we help you?
Pressure Sensor DS2
|
0009137 | Pressure Sensor DS2 | for Spray Valve AXSPV-EP/-PP and Pulse Valve AXDV-P1 / -P50 | 0 - 50 bar / 1/8“ BSP |
Pressure Sensor DS2
Article No.
0009137
Modell
Pressure Sensor DS2
Design
for Spray Valve AXSPV-EP/-PP and Pulse Valve AXDV-P1 / -P50
Version
0 - 50 bar / 1/8“ BSP
Technical Data
Pressure range [bar]
0 - 50
Connection
1/8“ BSP
Nominalcurrent [mA]
max. 25
Output signal OUT [mA]
4 - 20
Load resistance [A]
0.025
Voltage [V DC]
8 - 28
Protectionclass
IP 65
