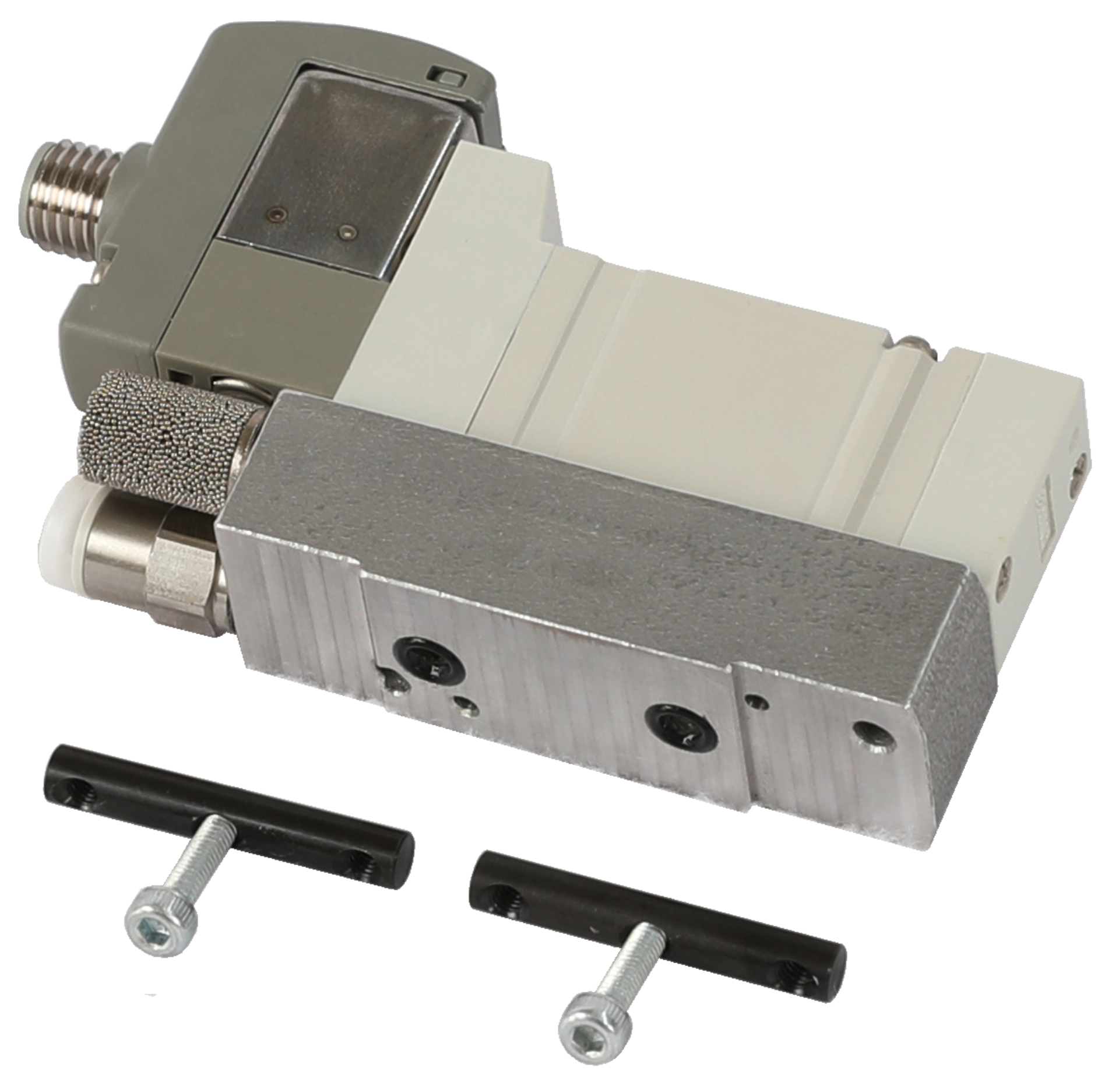

With this Electro-pneumatic Solenoid Valve with Adapter Plate, you can retrofit our tried-and-tested Dosing Valves of sizes AXDV-C3 and -C4 as well as our Outlet Valve AXDV-A3.
This allows you to control the dosing process with the shortest switching distances directly at the Dosing Valve. The complex tubing of external 5/2-way Valves is no longer necessary.
The pneumatic connection (for hoses with an external diameter of 4 mm) and the electrical connection (M8x1) lead away to the rear, which enables a space-saving installation position.
How can we help you?
5/2-way Solenoid Control Valve with Adapter Plate (AXDV-C3/ -C4/ -A3)
|
0012192 | 5/2-way Solenoid Control Valve with Adapter Plate | Electro-pneumatic, 24 VDC | Upgrade option for AXDV-C3/ -C4/ -A3 |
5/2-way Solenoid Control Valve with Adapter Plate (AXDV-C3/ -C4/ -A3)
Article No.
0012192
Modell
5/2-way Solenoid Control Valve with Adapter Plate
Design
Electro-pneumatic, 24 VDC
Version
Upgrade option for AXDV-C3/ -C4/ -A3
Connection diagram

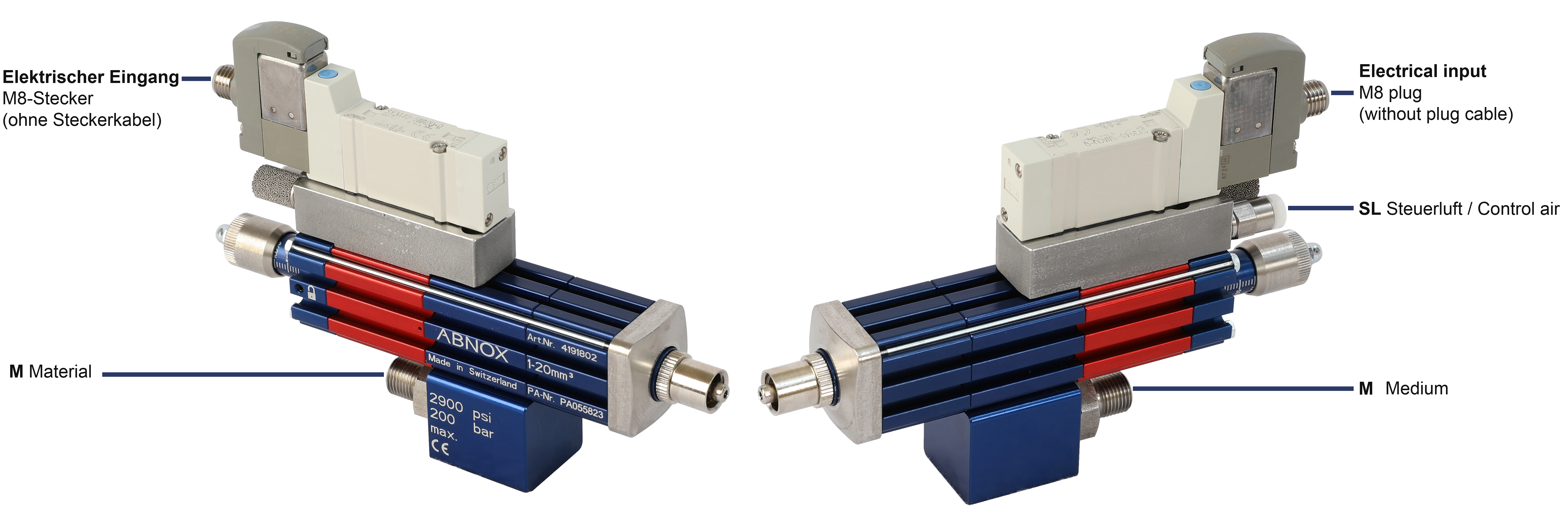

Metering Valve AXDV-C with Electro-pneumatic Solenoid Valve
Accessories Sensor Cable Extensions
| Description | Article No. |
|---|---|
|
Sensor Cable Extension M8x1 socket and plug, straight, 3-pin, A-coded, cable length 1.0 m |
0012446 |
|
Sensor Cable Extension M8x1 socket and plug, straight, 3-pin, A-coded, cable length 2.0 m |
0012655 |
|
Sensor Cable Extension M8x1 socket and plug, straight, 3-pin, A-coded, cable length 3.0 m |
0012656 |
|
Sensor Cable Extension M8x1 socket and plug, straight, 3-pin, A-coded, cable length 3.5 m |
0012907 |
|
Sensor Cable Extension M8x1 socket and plug, straight, 3-pin, A-coded, cable length 4.0 m |
0012908 |
|
Sensor Cable Extension M8x1 socket and plug, straight, 3-pin, A-coded, cable length 5.0 m |
0010872 |
Technical Data
Compressed air quality
ISO 8573-1:2020 [6:4:4]
Optimum pneumatic operatingpressure [bar]
6
Pneumatic connection internal thread
M5 for hose external dia. 4 mm
Electrical connection
M8x1 plug (plug cable not included in the scope of delivery!)
Voltage [V DC]
24
Protectionclass
IP67
