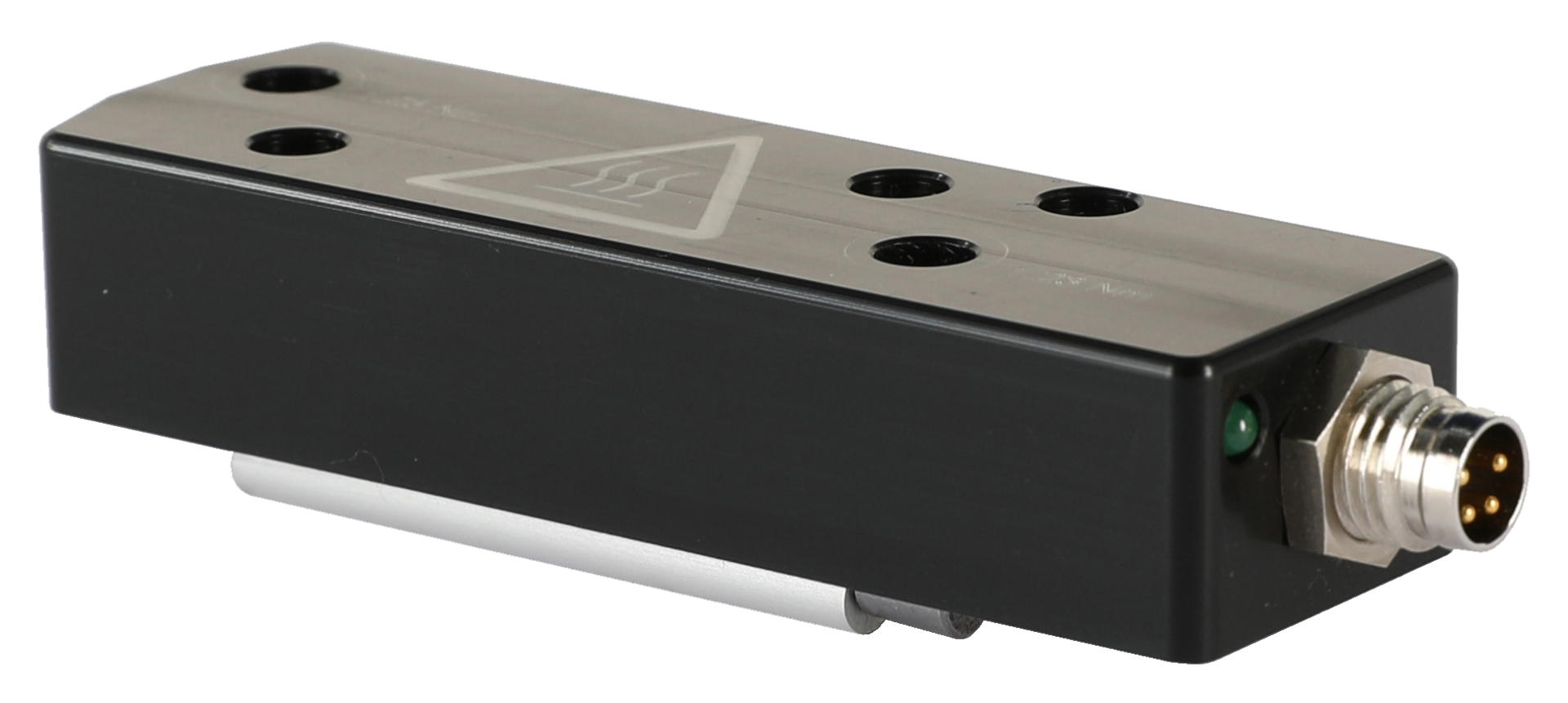

The AXVH-2 Valve Heater is used to heat the medium in the ABNOX Metering, Outlet and Needle Valves and thus improve their flow properties.
Use on ANBOX Valve type: AXDV-C3 / -C4 / -A3 / -N1

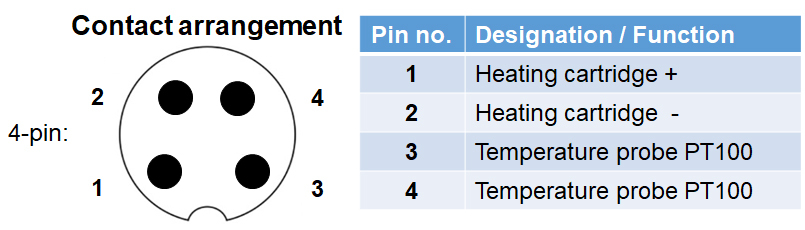

Connection Plug (4-pin): M8 x 1
The Valve Heater is attached to the side of the respective Valve type by means of C-slots Stones.
The heating housing is controlled with the ABNOX temperature controller (see matching accessories) or with a PLC (both not included in the scope of delivery).
IMPORTANT NOTE:
For better heat transfer we recommend mounting the Heater with silicon free thermal paste (e.g., Electrolube HTCP20S).
