Piston Seal Clamping Technology
The practical Piston Seals ensure a perfect seal between the grease cartridges used and the chain hoist. This keeps the grease exactly where you want it.
Clamping Technology Accessories: System-Critical Components for High-Pressure Applications
The reliability of hydraulic clamping fixtures depends significantly on the quality of the accessory components used. In a system operating at pressures of several hundred bar, every component – from the sealing element to the supply line – is safety-critical. ABNOX offers specialized accessories designed specifically for the requirements of high-pressure clamping technology to prevent leaks and maximize the service life of your fixtures.
Technical Requirements for Clamping Technology Accessories
Accessories in clamping hydraulics must not only withstand extreme static pressures but also defy dynamic loads and aggressive cooling lubricants in machining. ABNOX relies on materials with high tensile strength and chemical resistance for these components.
Our Accessory Categories at a Glance:

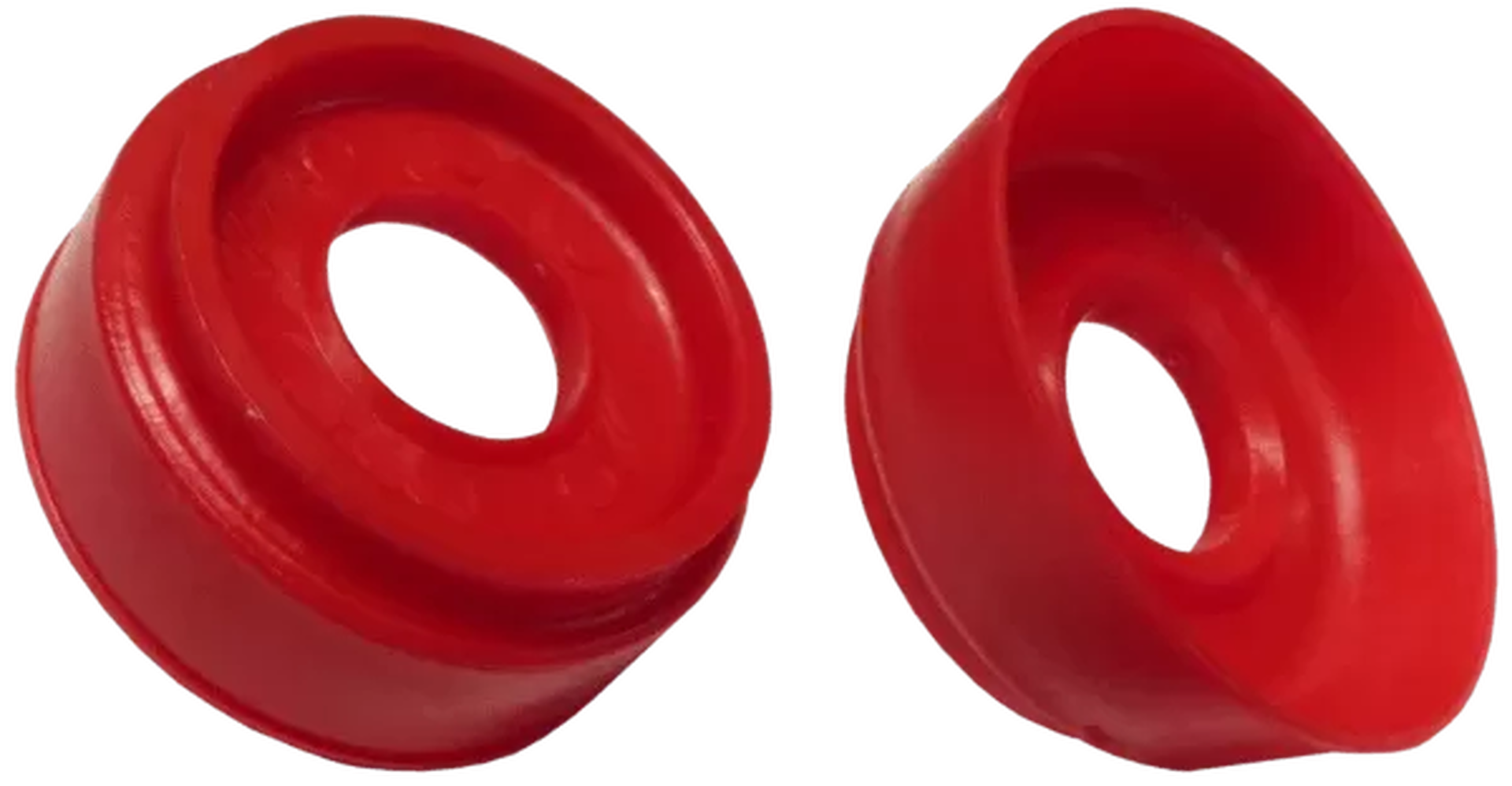

- U-Cups / Sealing Cups:
As central sealing elements in high-pressure cylinders and pumps, U-cups are crucial for maintaining clamping force. ABNOX sealing cups are characterized by high abrasion resistance and an exact fit to keep frictional resistance low and sealing effectiveness at a maximum. - High Pressure Connectors Clamping Technology:
The interface between the pressure source and the clamping fixture. Our nozzles are designed for loss-free coupling processes under high back-pressure and guarantee a secure connection without loss of medium. - High Pressure Hoses and Rigid Feed Tubes Clamping Technology:
Flexible and rigid lines for transporting the hydraulic medium. The high-pressure hoses feature multi-layer reinforcement to minimize volume expansion under load, while the extension tubes allow for precise, rigid routing. - Stand Set Clamping Technology:
For stable mounting and positioning of high-pressure hand pumps in the workshop environment or at the machine. A secure stand is a basic requirement for ergonomic power transmission during manual pressure build-up.
Design Advantages and Material Quality
- Burst Pressure Safety:
All hoses and tube connections are designed with high safety factors relative to the nominal operating pressure. - Media Compatibility:
Use of elastomers and steels that are inert to hydraulic oils and standard industrial cleaning agents. - Minimal Tolerances:
Precision-manufactured connection threads (metric/imperial) guarantee easy integration and permanent sealing integrity of the entire system.
Process Optimization Through Quality Accessories
The use of inferior accessories in clamping technology often leads to gradual pressure loss, which compromises machining precision. Genuine ABNOX accessories secure system integrity and reduce the risk of unplanned maintenance on clamping devices. Due to high manufacturing quality, the components pay for themselves through a significant reduction in leakage rates and a longer service life of the primary equipment.
Accessories Clamping Technology Kategorien

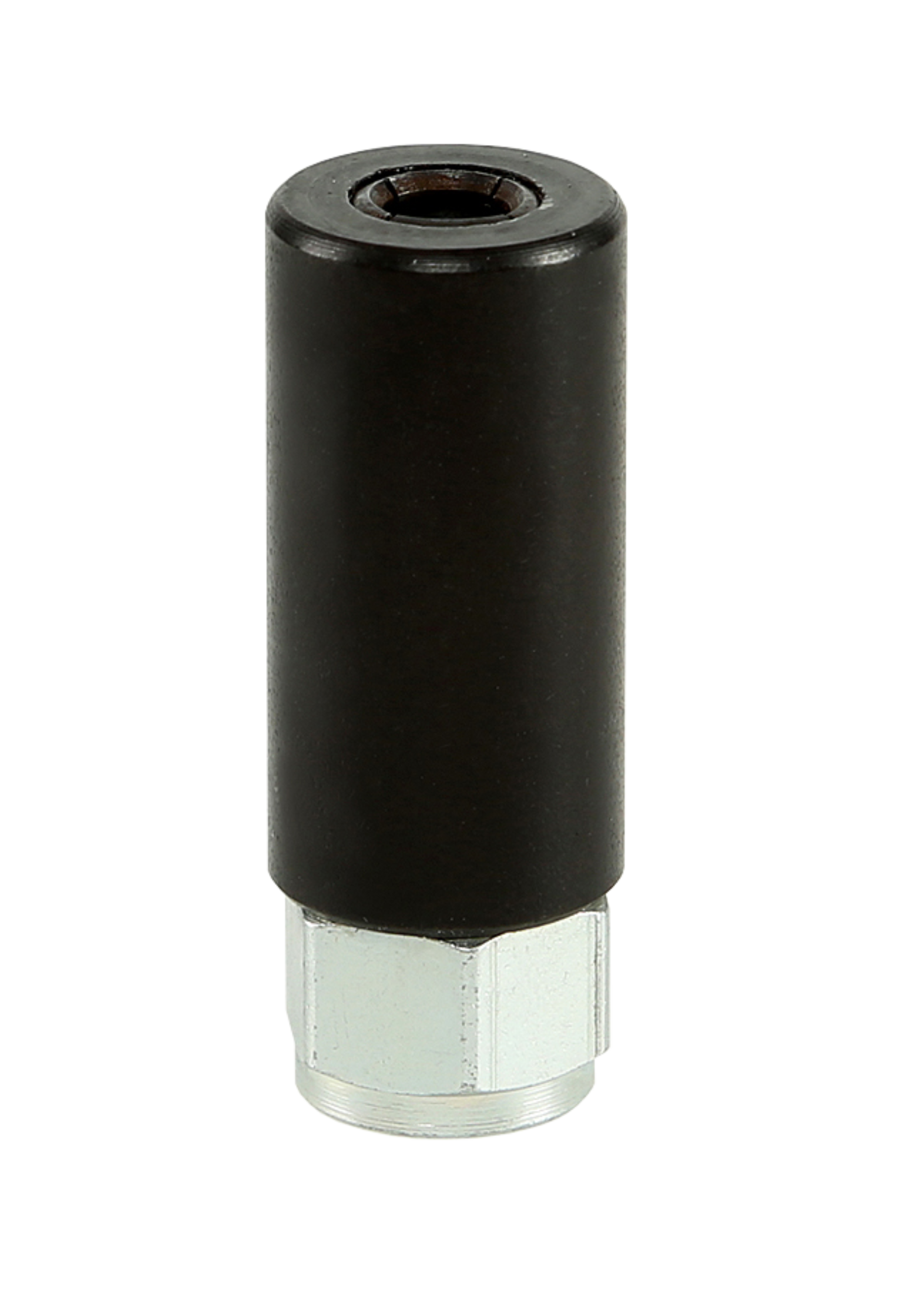

High Pressure Connectors Clamping Technology
High-Pressure Nozzles enable the precise delivery of lubrication or clamping media. They are robust, durable, and optimized for use under high pressures.

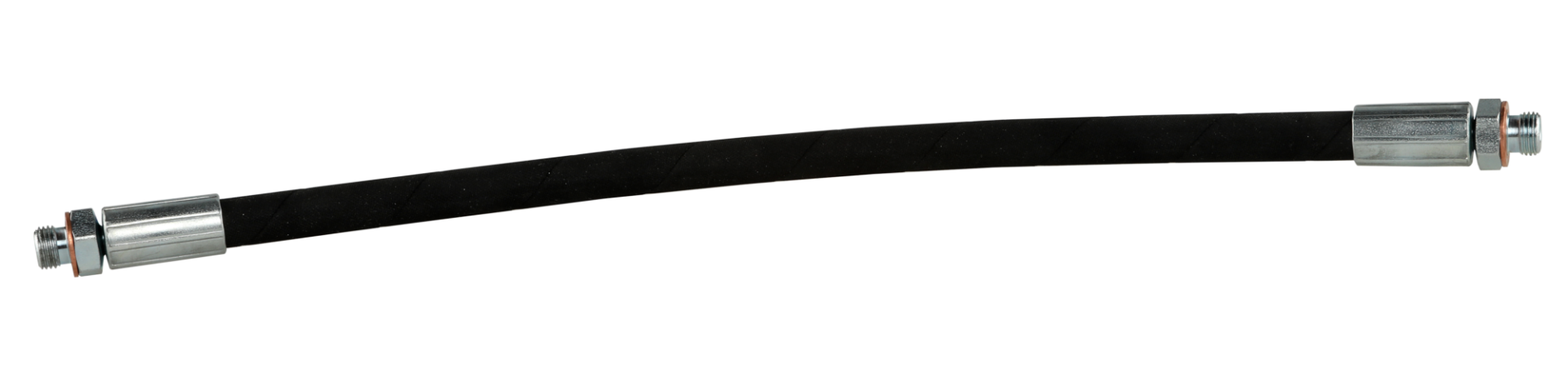

High Pressure Hoses and Rigid Feed Tubes Clamping Technology
High-Pressure Hoses and Extension Tubes are the links between high-pressure pumps and high-pressure inlet valves, and are critical for pressure transmission in clamping systems. Our hoses offer high flexibility and resistance to high pressures, ensuring that your clamping systems operate reliably at all times.

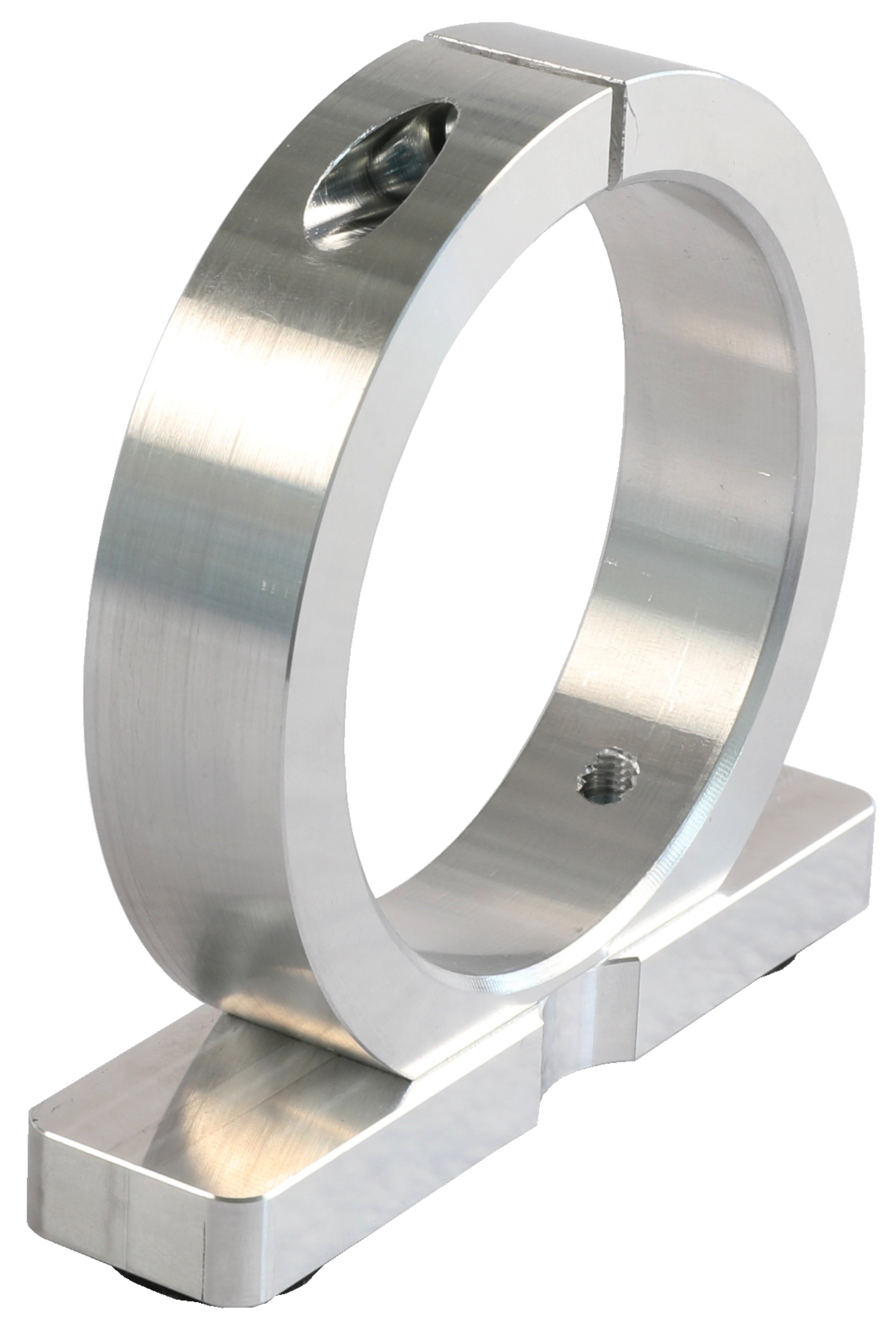

Stand Set Clamping Technology
The stand base allows for the practical one-handed operation of the 2-hand high-pressure lever pump on a workbench or table.
