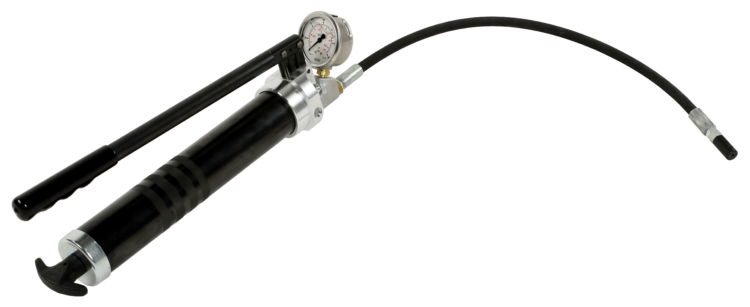

High-Pressure Two-Handed Pump with Pressure Gauge for clamping hydraulic clamping nuts and tools.
The ABNOX high-pressure hand-lever press is characterized by:
- Comfortable operation even at 700 bar pressure
- Precise and gentle operation thanks to check, vent, and pressure relief valves
- Generates high clamping forces
- Easy and clean disconnection from the nipple thanks to pressure relief and integrated grese return
- Pressure gauge as a monitoring tool for safe clamping and checking the pressure in the clamping system
Note:
Temperature has a significant influence on pressure application at the clamping tool and on the selection of the high-pressure two-hand press. As the temperature drops, the pressure also drops, and vice versa. Especially in the event of significant temperature fluctuations exceeding 30°C, it may be necessary to reapply pressure to the clamping tool. Regular checks must be performed.

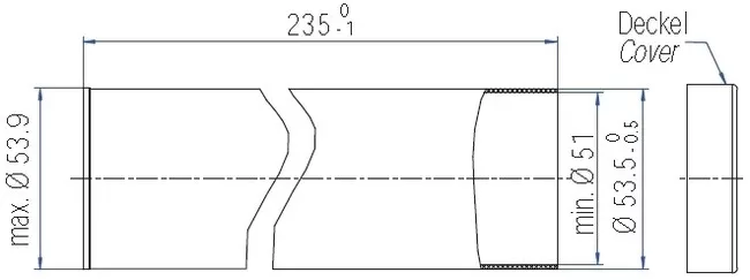

For the 400/500 cm³ ABNOX cylinders (lubricant reservoirs), only 400 g cartridges conforming to DIN 1284 may be used:
