One-hand Pumps with pressure gauges enable precise tension control

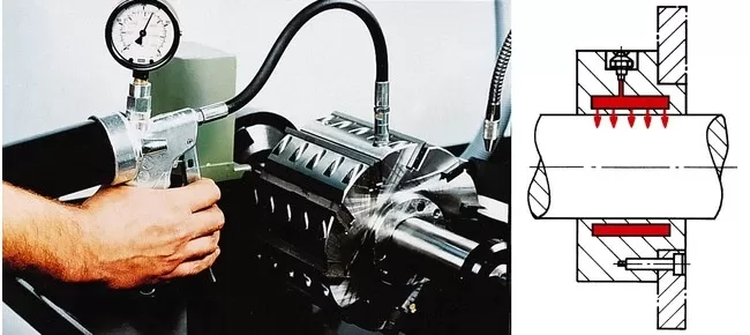

High-pressure single-hand press with pressure gauge for the hydraulic clamping of tools and cutter heads.

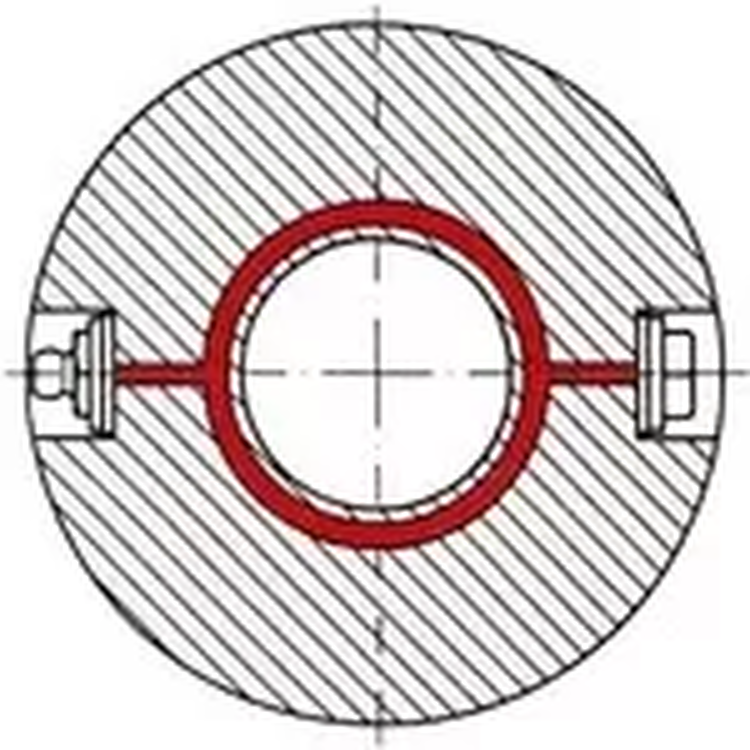

Modern clamping systems are increasingly equipped with hydraulic components. Cutter heads and machining tools are clamped hydraulically. A pressure chamber integrated into the tool is pressurized using grease or oil, so that the tool is pressed onto the machine’s shaft, for example.

This type of clamping makes it possible to transmit high torques and achieve precise, concentric clamping.

ABNOX High-Pressure One-Handed Pumps feature:

• Safe and easy operation thanks to the ergonomic handle.
• Precise and gentle operation due to the check, bleed, and pressure relief valves.
• Generates high clamping forces without the need for external power.
• Easy and clean decoupling from the nipple thanks to pressure relief and integrated lubricant return.
• Pressure gauge as a monitoring tool for secure clamping and testing of the pressure within the clamping system.
• Models with 400/500 cm³ cylinders are suitable for DIN 1284 cartridges and feature a specialized internal cylinder design for secure cartridge support.
• No reversal of the piston seal (cup seal) in the cylinder is required when filling with lubricant.

Important Notes:

Temperature has a significant impact on the pressure applied to the clamping tool and on the selection of the high-pressure one-handed pump. When the temperature drops, the pressure also decreases, and vice versa. Particularly during extreme temperature fluctuations of more than 30°C, it may be necessary to re-pressurize the clamping tool. Regular inspections must be carried out.

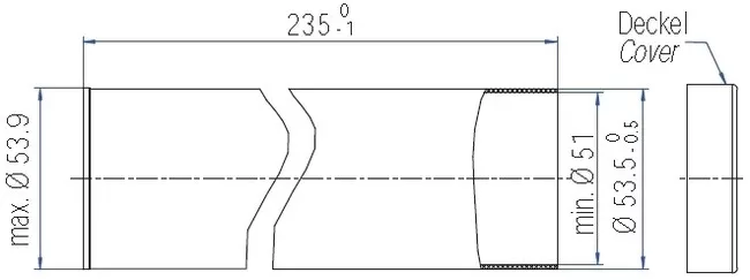

For the 400/500 cm³ ABNOX cylinders (lubricant containers), only 400 g cartridges according to the DIN 1284 standard can be used.
