Product information

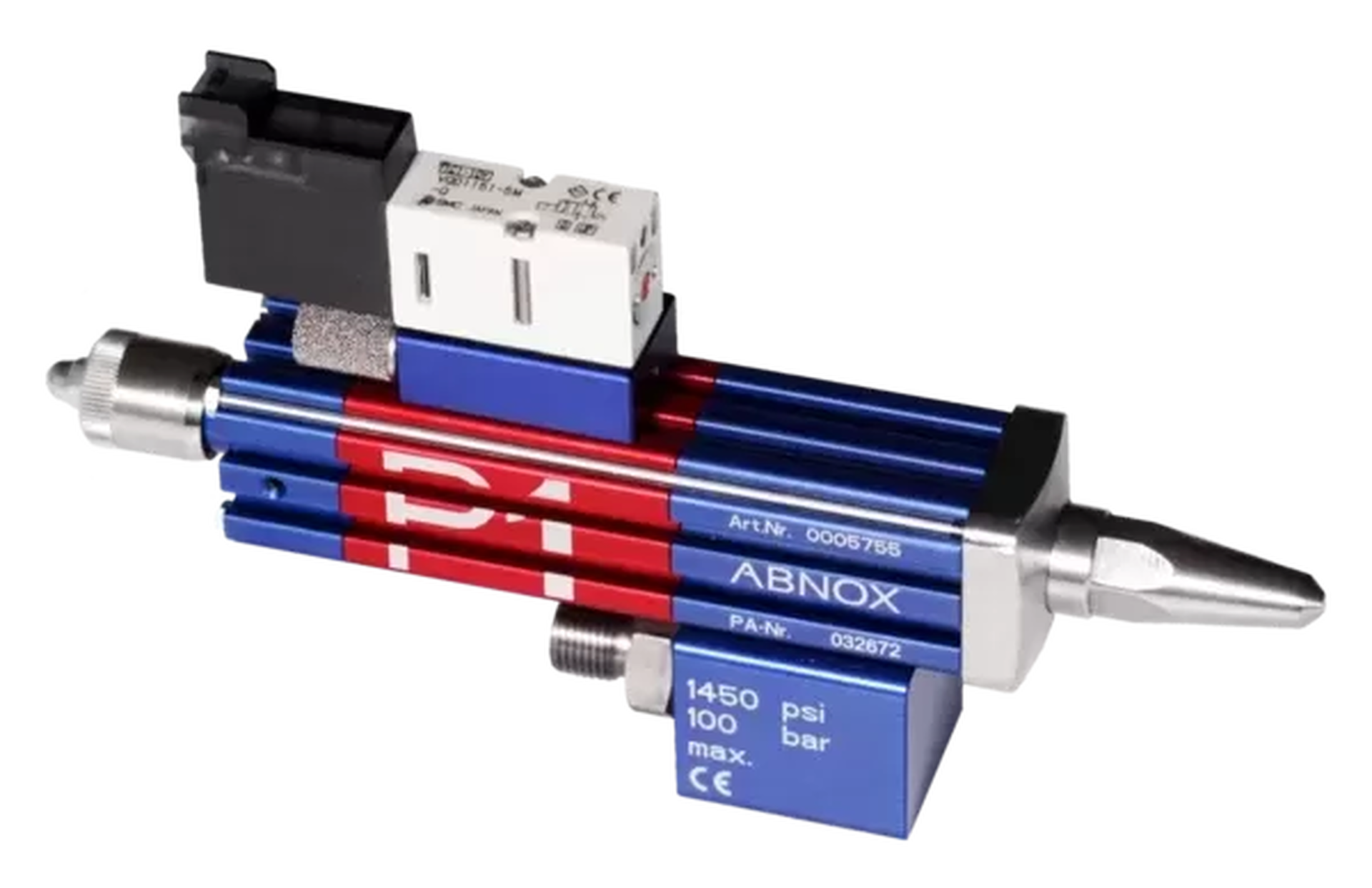

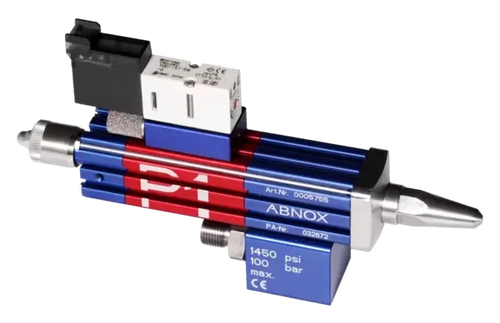

The ABNOX Metering pulse valve in the P1 series with a compact design is an extremely fast-switching pneumatically controlled high-performance valve for the contactless dosing of medium to high-viscosity and abrasive lubricants.
The pulse valve is electrically triggered via an integrated 4/2 directional control valve.
The short distances in the entire air supply system and the fast responding magnetic valve allow up to 100 cycles of operation per second.
The alternating supply of air to the working piston opens and closes the nozzle needle. When the control air supply is shut off or fails, a spring closes the nozzle needle.
• Efficient contact-free metering of lubricants
• Flexible use thanks to the interchangeable nozzle and valve pin
• Wide dosing spectrum from the tiniest of squirts to jet-forming dosages
• Exact metering processes
• High accuracy dosing
• High dosing speed with perfectly coordinated dosing volumes
• Adjustable dosing volume
• Compact design for easy integration into any production equipment
• The lightweight device is ideally suited for high movement speeds
Input medium specification
Schmierstoffe bis NLGI 3 / max. 1'000'000 m Pa.s
Working pressure medium inlet [bar]
100 (abhängig von dem Steürluftdruck = Gegendruck)
Max. workingpressure medium inlet [bar]
100 (abhängig von dem Steürluftdruck = Gegendruck)
Continuous sound pressure level
76 dB (A)
"M" Material pressure [bar]
1/8'' BSP
Connection internal thread
M3 für Schlauch ?4
Connection medium inlet internal thread
G 1/8''
Connection medium inlet external thread
G 1/8''
Connection medium outlet internal thread
Mit Düse Ø 0.3 mm
Compressed air quality
ISO 8573-1:2020 [6:4:4]
Optimum pneumatic operatingpressure [bar]
100 (depending on medium)
"SL" Control air pressure [bar]
1/8'' BSP
Pneumatic connection internal thread
M3 für Schlauch ?4
Electrical connection
Upgrading options:
Switching frequency [Hz]
100 (abhängig vom Medium)
Power input [W]
2
Voltage [V DC]
24
Protectionclass
Connecting plate for Metering Valves AXDV-C1 / -C2 / -P1|Material Pressure Regulator MDR-LW04-2M (V3.0)
Fastening thread
24
Weight [kg]
0.30
